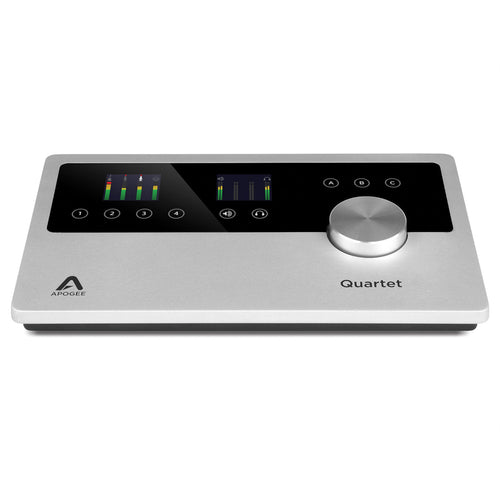

Apogee Quartet is the ultimate desktop audio interface and studio control center for professional recording. Made for the musician, producer and engineer that wants the ultimate sound quality and studio control in a compact desktop form factor, Quartet features legendary Apogee AD/DA conversion, 4 world-class microphone preamps, USB MIDI I/O, ESS Sabre32 DAC technology and monitor controls.

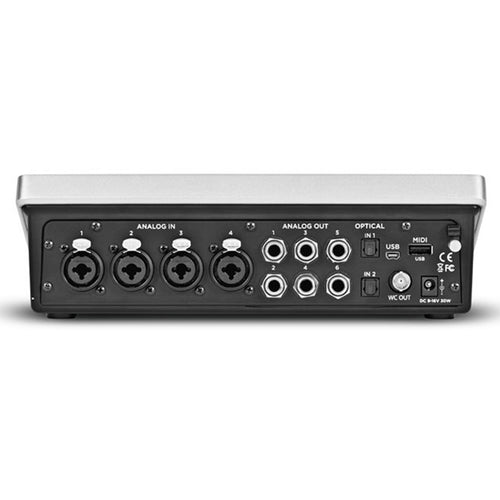

With Quartet’s 4 Combo inputs you can connect microphones, guitars, keyboards or line level devices such as external mic preamps or a mixing board. Expand your system with 8 additional inputs via Quartets optical (ADAT/SMUX) digital IN. Quartet also includes 8 analog outputs – 6 1/4” balanced outputs for connection to speakers or outboard equipment and a separate, independently controlled 1/4” stereo headphone output. You can control up to 3 pairs of speakers or set Quartet up for 5.1 surround monitoring.
From the mic preamps to the AD/DA converters and the clocking, Quartet is best-in-class and cutting-edge Apogee technology. With components carefully selected in critical listening tests and a highly efficient circuit design, Quartet was built by Apogee engineers to make a difference you can hear.
Quartet’s AD/DA converters are designed to deliver the purest recordings and best listening experience possible. Quartet’s efficient circuitry and state-of-the-art components provide a simplified signal path resulting in incredibly transparent recordings.
Much like the AD/DA converters, Quartet’s mic preamps feature the latest components and offer seamless click-free transitions as the gain increases and decreases throughout the incredible range of 0-75dB. This unprecedented feature allows you to dial in the perfect level, either with the controller knob or from within software, while delivering ultra-low noise and smooth, crisp detail. Quartet’s mic pres are suitable for all dynamic, condenser or ribbon microphones, allowing you to capture any sound without compromise.
An Apogee technology first introduced in 1992 on Apogee’s AD-500 converter, Soft Limit can be heard on countless platinum selling records around the world. Once a technology exclusively reserved for Apogee’s most advanced audio converters, Soft Limit is included in Quartet and can be enabled in Apogee Maestro software.
This superior analog design prevents the digital clipping that causes distortion by instantaneously rounding off transient peaks before they hit the analog-to-digital converter. Soft Limit allows several more decibels of apparent level to be recorded while subtly providing an analog-like warmth to the sound.
- AD/DA conversion for recording up to 192kHz / 24-bit.
- 4 analog inputs with world-class mic preamps and selectable 48v phantom power for connecting microphones, instruments or line-level devices.
- 8 analog outputs – 6 balanced 1/4” outs for speakers or outboard gear, 1/4” stereo headphone output.
- 8 digital inputs via 2 optical connections (ADAT/SMUX).
- Monitor control for up to 3 sets of speakers or 5.1 surround.
- USB 2.0 High Speed connection to Mac or PC.
- Direct digital connection with iOS devices (iPhone, iPad and iPod touch. 30-pin cable sold separately).
- Software control of hardware parameters including input selection and low latency monitoring.
Specifications
Polyphony: Maximum 32 simultaneous notes from Sequencer. Maximum 32 simultaneous notes from internal synth tone generator.
Sequencer: 110,000 notes (lithium battery backup); 32 Tracks; 20 Songs. Timing Resolution: 1/480 quarter-notes. Tempo: 25-300 bpm.
Tone Generator: AWM2 (Advanced Wave Memory; 32Mbit Wave ROM), XG, GM. 480 Normal Voices; 11 Drum voices. Maximum 32 timbres (last-note priority with element reverse, DVA).
Phrases/Styles: 3876 Preset phrases, 99 User phrases per style. 64 styles consisting of Preset phrases and User phrases), 8 sections per style.
Chord Memory: M7, M, 6, m7(11), M9, add9, m,m6, m7,m7(flat5), mM7, m9, madd9, 7,7(sharp5), 7(flat9), 9, 7(sharp9), 7(sharp11), 7(flat 13), 7(13), 7sus4, sus4, dim, aug, 6-09, 7(flat5).
Effects: 11 Reverbs, 11 Choruses, Delay, Rotary Speaker, Tremolo, Auto Pan, Phaser, Distortion, Overdrive, Amp Sim, 3-band EQ, 2-band EQ, Auto Wah, and more.
Memory: 3.5 in. 2DD/2HD floppy disk drive (SMF Format 0/1, ESEQ), Demo Disk Included
Control: MIDI IN/OUT (x2), Foot Switch
Manual
Download Manual
