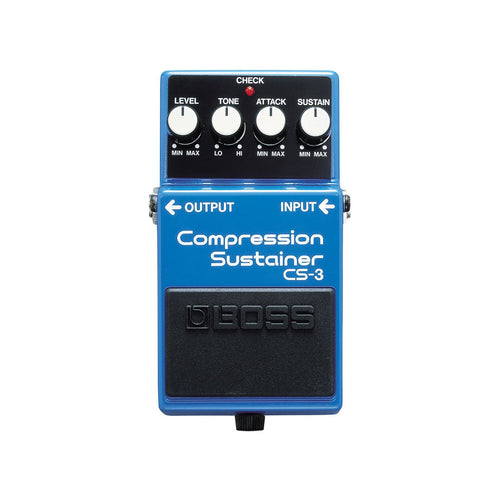

The CS-3 Compression Sustainer pedal compresses louder signals while boosting lower signals, providing smooth sustain without degrading the original sound quality. This is the perfect pedal for guitarists and bassists who want to sound their best.

Specifications

Nominal Input Level: -20 dBu

Input Impedance: 1 M ohm

Nominal Output Level: -20 dBu

Output Impedance: 1 k ohm

Recommended Load Impedance: 10 k ohms or greater

Bypass: Buffered bypass

Controls

SUSTAIN knob

ATTACK knob

TONE knob

LEVEL knob

Pedal switch

Indicator: CHECK indicator (Serves also as battery check indicator)

Connectors

INPUT jack: 1/4-inch phone type

OUTPUT jack: 1/4-inch phone type

DC IN jack

Power Supply: Carbon-zinc battery (9V, 6F22), Alkaline battery (9V, 6LR61), AC adaptor (PSA series: sold separately)

Current Draw: 20 mA

Manual

Download Manual
