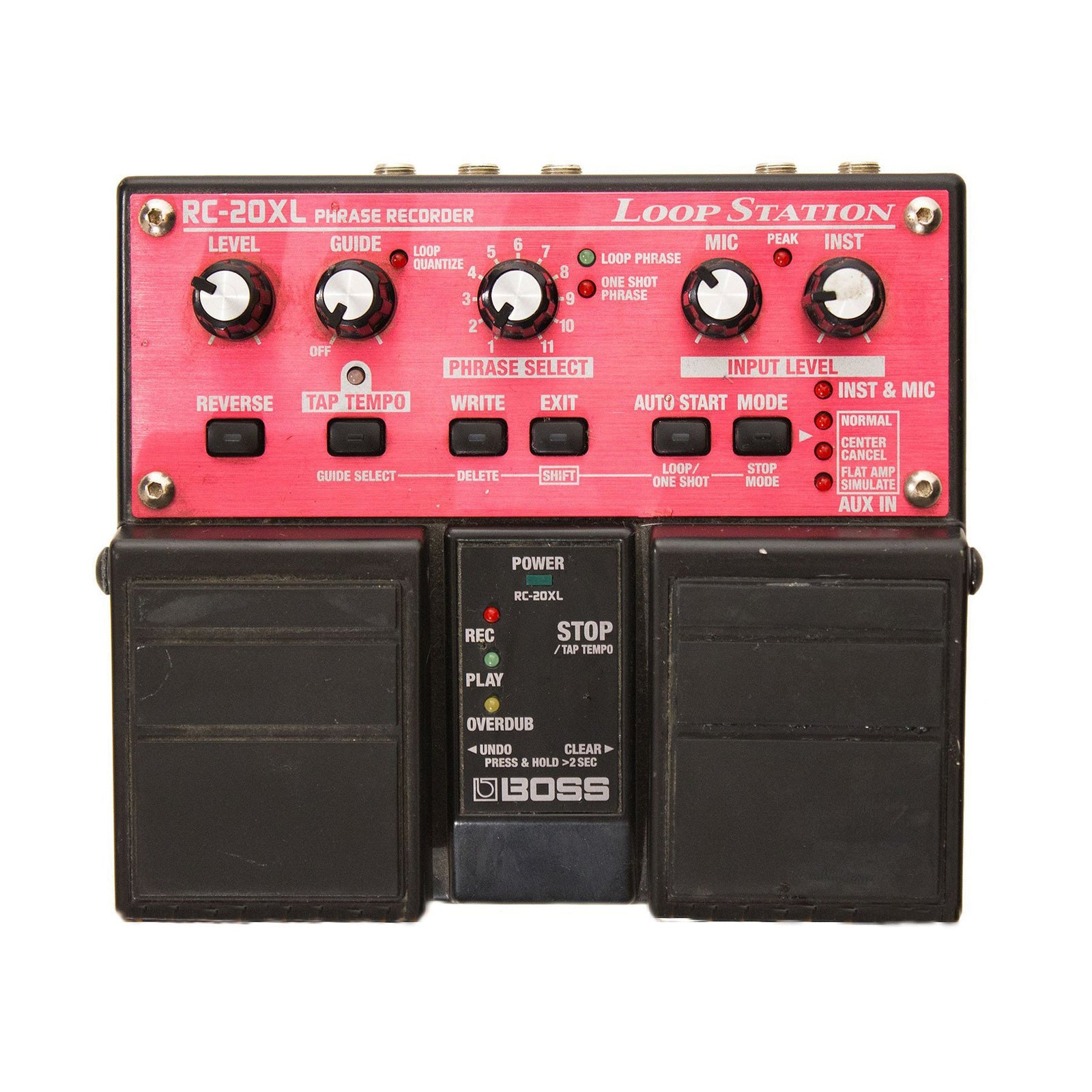

Whether for use onstage or at home, the RC-20XL allows musicians to create multi-layered performances in real-time. Loops and riffs can be stacked repeatedly until the 16 minutes of ample recording space is full. Never before has it been so easy to create a massive “one-person band” sound in real-time.

Specifications

Nominal Input Level

Inst: -20 dBu (variable)

Mic: -40 dBu (variable) Aux In:-10 dBu

Input Impedance

Inst: 1 M ohms

Mic: 1 k ohms

Aux In: 47 k ohms

Nominal Output Level Output: -20 dBu

Output Impedance: 1 k ohms

Recommended Load Impedance: 10 k ohms or greater

Internal Memory Recording time: 16 min.(max.)

Maximum number of saved phrases: 11 phrases (max.)

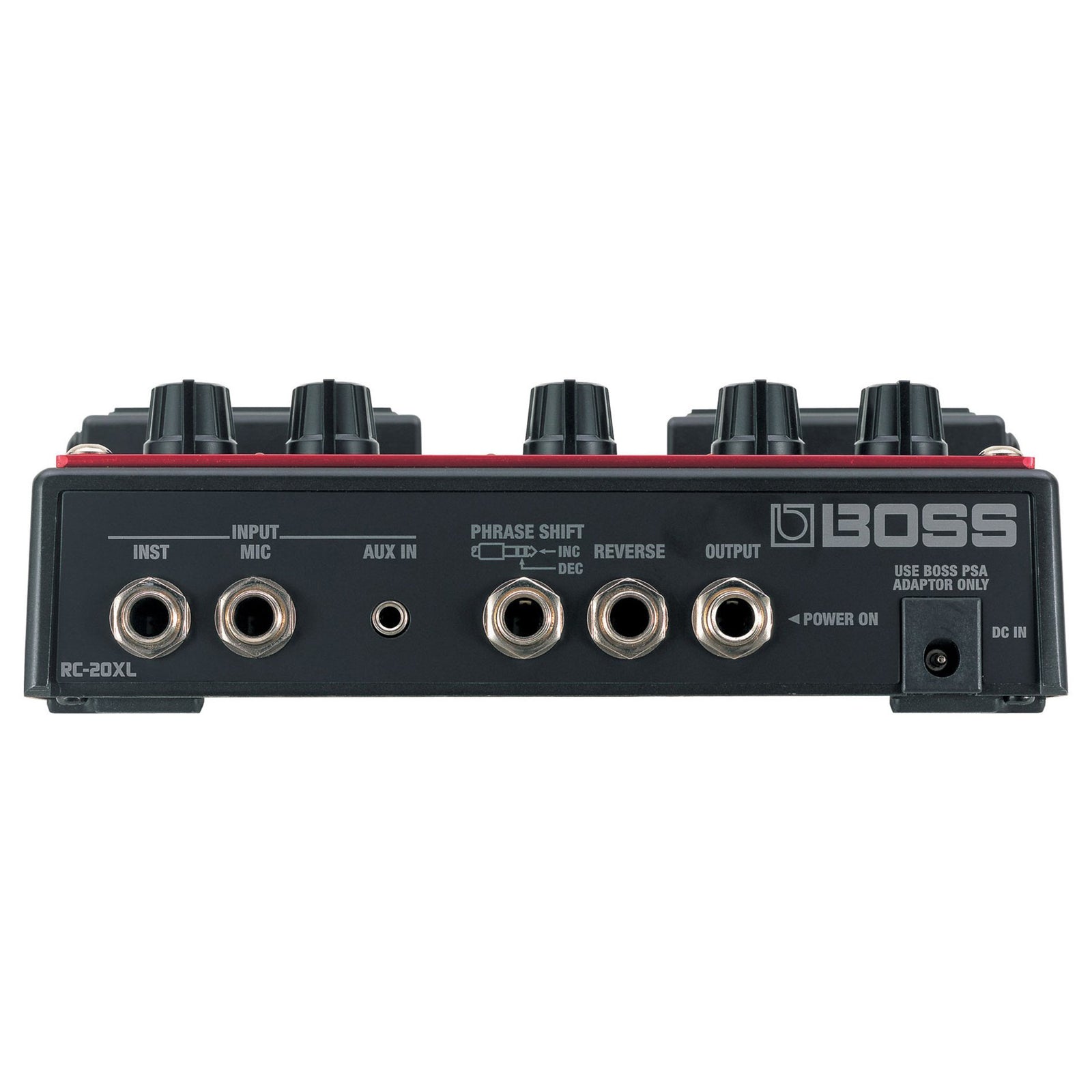

Connectors: Inst jack (1/4 inch phone type), Mic jack (1/4 inch phone type), Aux In jack (Stereo miniature phone type), Phrase Shift jack (1/4 inch TRS phone type), Reverse jack (1/4 inch phone type), Output jack (1/4 inch phone type), AC Adaptor jack

Power Supply: DC 9V: Dry battery (R6/LR6 (AA) type) x 6, AC Adaptor (PSA-series)

Current Draw: 120 mA (9 V max.)

Accessories: Owner’s Manual, Dry battery (AA type) x 6, Sound Library for RC-20XL (Sample Phrase CD)

Options: AC Adaptor (PSA-series), Foot Switch (FS-5U)
