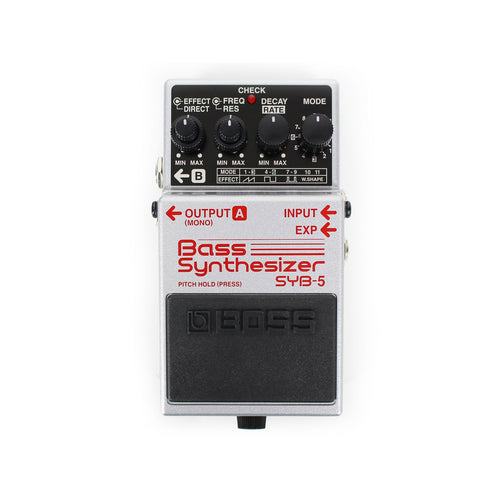

The BOSS SYB-3 was the world’s first bass synthesizer to be packed into a compact pedal, and it found favor with experimentalists and tone aficionados alike. Today, the next-generation bass-synth pedal has arrived: the SYB-5. Utilizing the latest in DSP technology, the SYB-5 faithfully reproduces the classic sound characteristics of analog synthesizers with enhanced punch and power.
Specifications
Nominal Input Level: -20 dBu
Input Impedance: 1 M ohms
Nominal Output Level: -20 dBu
Output Impedance: 1 k ohms
Recommended Load Impedance: 10 k ohms or greater
Bypass: Buffered bypass
Connectors
INPUT jack: 1/4-inch phone type
OUTPUT A (MONO)/OUTPUT B jack:1/4-inch phone type
EXP jack: 1/4-inch stereo phone type
DC IN jack
Controls
MODE knob
DECAY/RATE knob
FREQ/RES(Frequency/Resonance) knob
EFFECT/DIRECT(Effect Level/Direct Level) knob
Pedal switch
Power Supply: Alkaline battery (9 V, 6LR61) or Carbon-zinc battery (9 V, 6F22), AC adaptor (PSA series: sold separately)
Current Draw: 50 mA
Expected battery life under continuous use (These figures will vary depending on the actual conditions of use.)
Alkaline: Approx. 6 hours
Carbon: Approx. 2 hours
