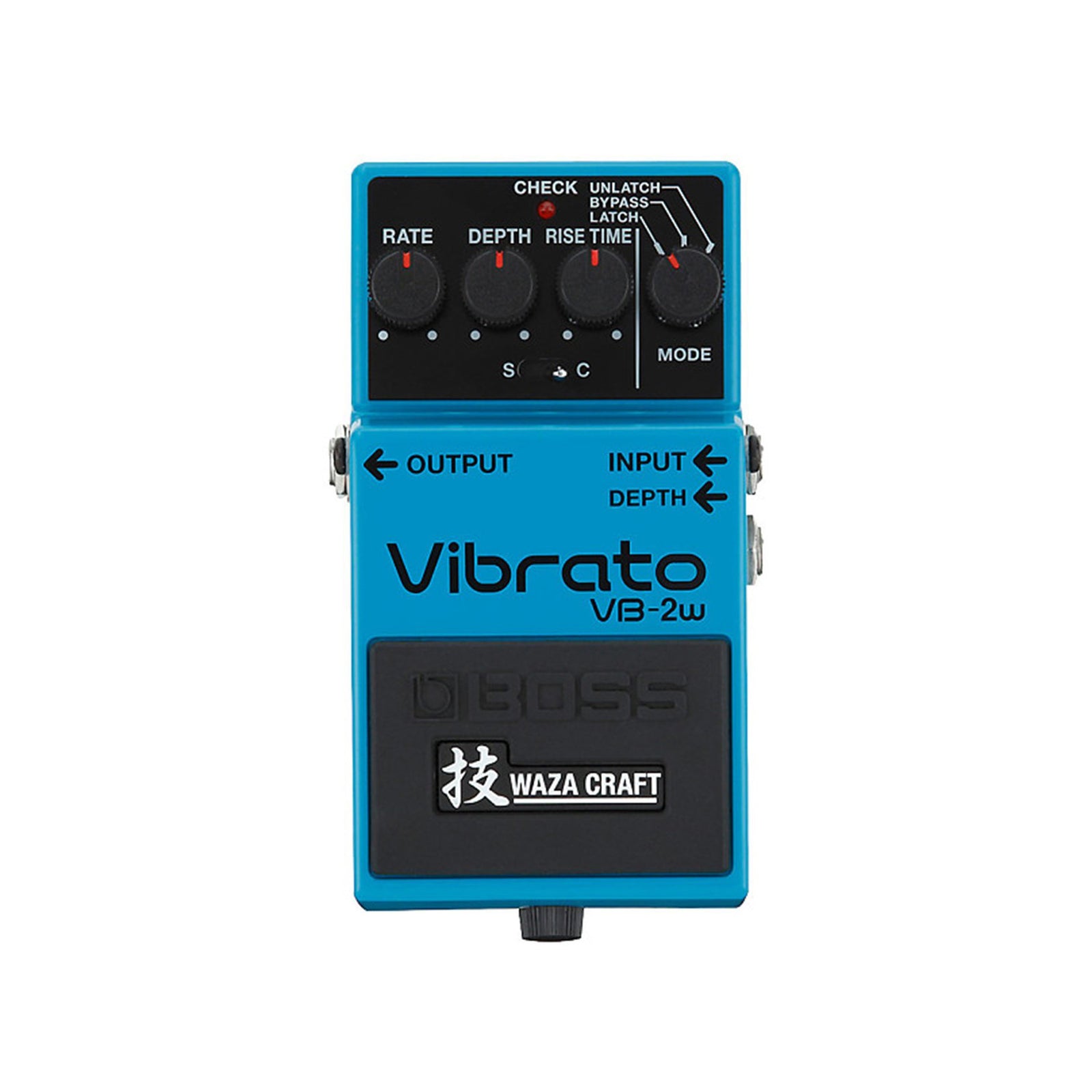

Ahead of its time when it debuted in 1982, the VB-2 Vibrato has been rediscovered by modern players looking to create unique guitar textures with stompbox effects. Thanks to its expressive, one-of-a-kind sound, this rare pedal has gone on to become one of the most valuable BOSS effects in the vintage market. Now, the progressive spirit of the VB-2 has been reborn as the Waza Craft VB-2W. Using all-analog circuitry, the VB-2W authentically reproduces the true pitch-shifted vibrato of the original pedal, and also adds an innovative new vibrato mode and real-time control function for enhanced expression.

Specifications

3 Modes: LATCH, UNLATCH, BYPASS

Nominal Input Level: -20 dBu

Input Impedance: 1 M ohm

Nominal Output Level: -20 dBu

Output Impedance: 1 k ohm

Recommended Load Impedance: 10 k ohms or greater

Bypass: Buffered bypass

Controls

Pedal switch

Standard/Custom switch

RATE knob

DEPTH knob

RISE TIME knob

MODE knob

Indicator: CHECK indicator (Serves also as battery check indicator)

Connectors: INPUT Jack, OUTPUT Jack, DEPTH Jack, DC IN jack

Power Supply: Alkaline battery (9V, 6LR61) or Carbon-zinc battery (9V, 6F22), AC adaptor (sold separately)

Current Draw: 35 mA
