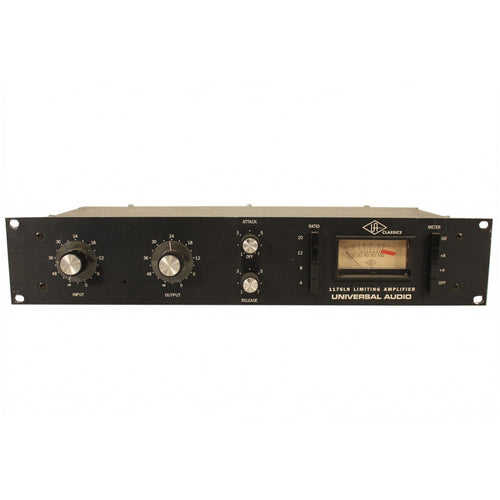

The 1176LN Classic Limiting Amplifier is a modern reproduction, yet every effort was made to remain faithful to UA founder Bill Putnam Sr.’s visionary design and intentions. The original UA 1176LN was a major breakthrough in limiter technology — the first true peak limiter with all transistor circuitry offering superior performance with a signature sound — and set the standard for all limiters to follow. The ultra-fast attack time and trademark sound have lured legendary artists and studio moguls alike to the 1176LN — Peter Frampton, Joe Satriani, Joe Chiccarelli, Vance Powell, and Mike Elizondo are just a few names on a list that’s continued to grow, for nearly 50 years. FET-Style Compressor with Class A Output & Custom Transformers. True to the original 1176 in design, manufacturing and performance. Ultra-fast attack time – 20 microseconds to 800 microseconds.

Specifications

Input Impedance: 600 ohms, bridges-T control (floating)

Output Load Impedance: 600 ohms, floating, damping factor 20

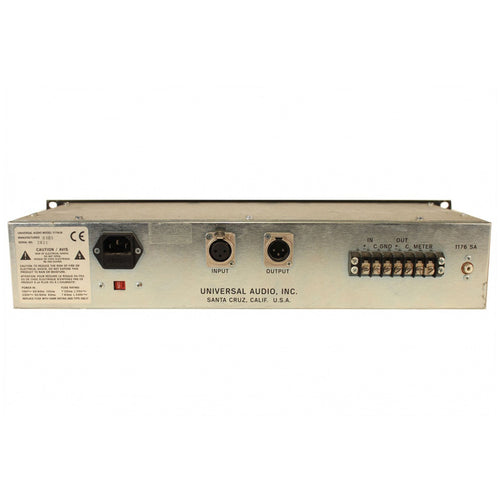

External Connections: Jones Barrier terminals and XLR connectors

Frequency Response: ± 1 dB 20 Hz to 20kHz

Gain: 50 dB

Distortion: Less than 0.5% total harmonic distortion from 50 Hz to 15 kHz with limiting

Signal to Noise Ratio: Greater than 70 dB at +10 dBm

Attack Time: 20 microseconds to 800 microseconds

Release Time: 50 milliseconds to 1.1 seconds
