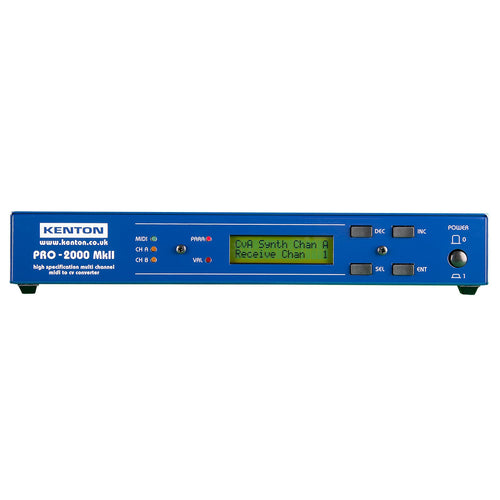

In order to control pre-MIDI synthesizers from a modern MIDI instrument or sequencer, you need to change the digital MIDI messages into the kind of signals the pre-MIDI synth can understand. For the price, this really is the best value converter on the market, anywhere. The versatility of this unit is awesome. Just look at the features.
Power cord included, all other leads are sold separately as we do not know what you want to connect to.
Products bought directly from Kenton will be supplied with the appropriate power cord for the destination country.

Specifications

Power: 230v AC 50Hz (170v – 260v) or 115v AC 50/60Hz (85v – 130v).
 We will include the correct power cord appropriate for the delivery address.

Dimensions: 280mm x 132mm x 42mm


Weight: 2.5Kg

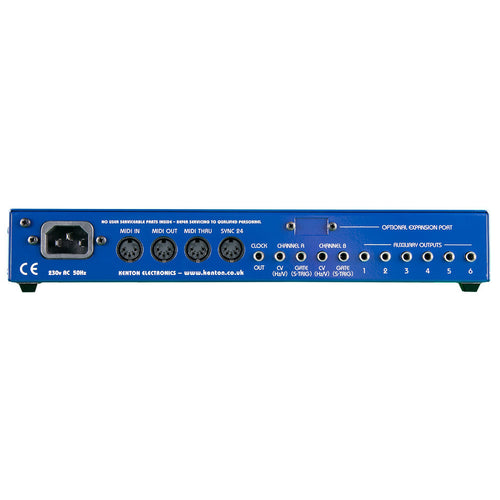

MIDI: In Out and Thru


Outputs: CV on 3.5mm jack (V/oct or Hz/V)


Gate on 3.5mm jack (Gate or S-trig)


Aux on 3.5 mm jack


Pin: 15 pin High-Density D or 8 pin Mini Din (with optional expansion port)


Options: DCB port with cable, KADI/WASP port with cable

Manual

Download Manual
