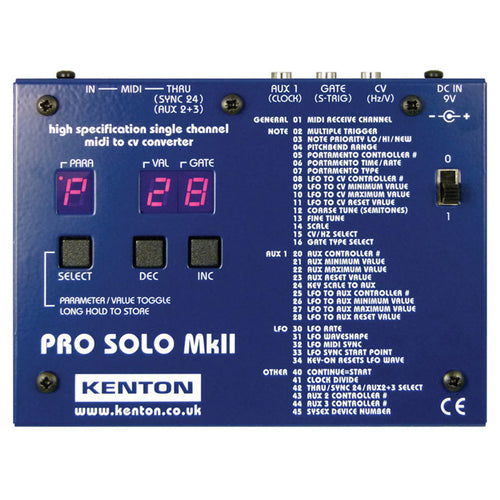

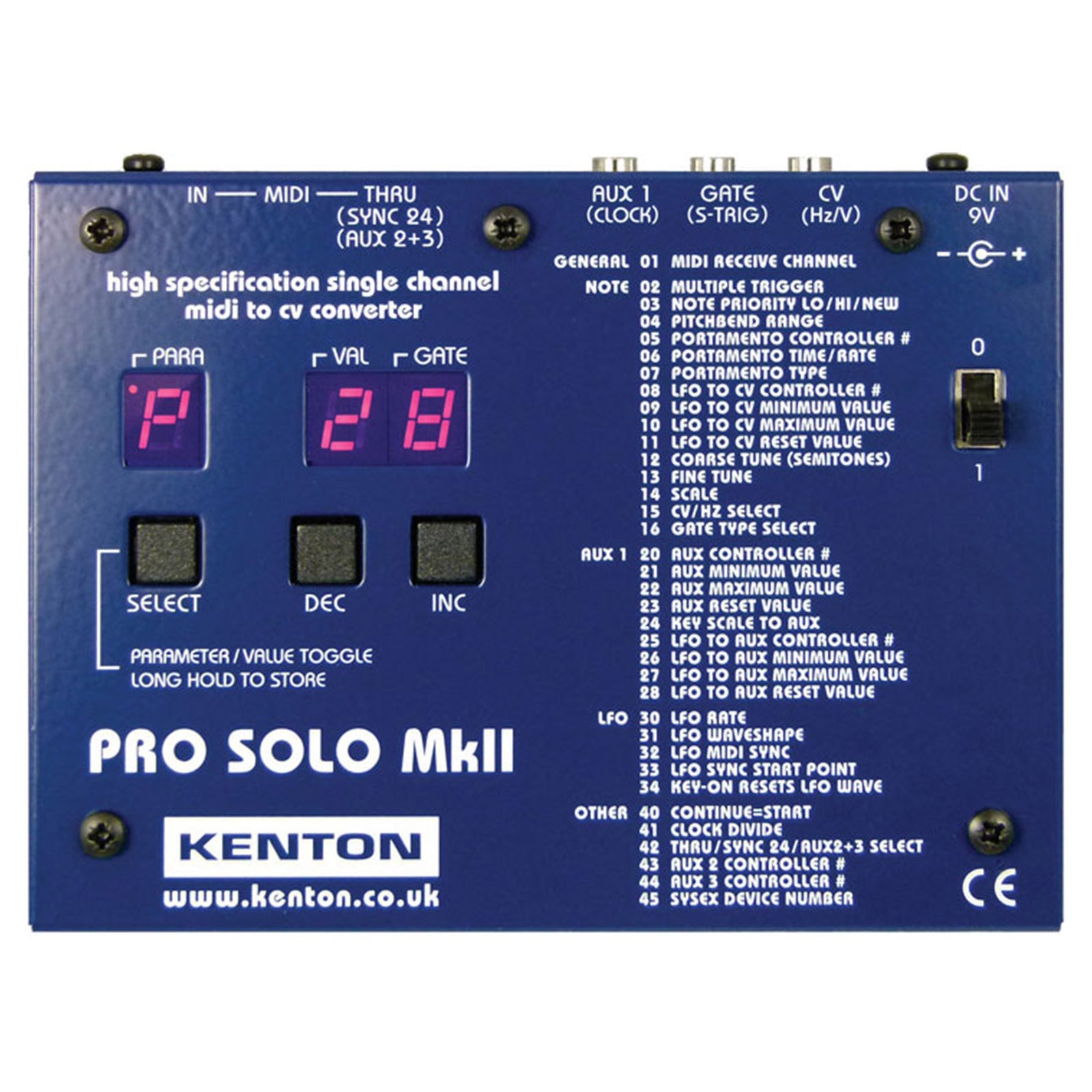

The Pro Solo MkII is much more than just a MIDI to CV converter, incorporating a built-in LFO as well as portamento functions.

Specifications

Dimensions: 130 x 97 x 40 mm
, 450g

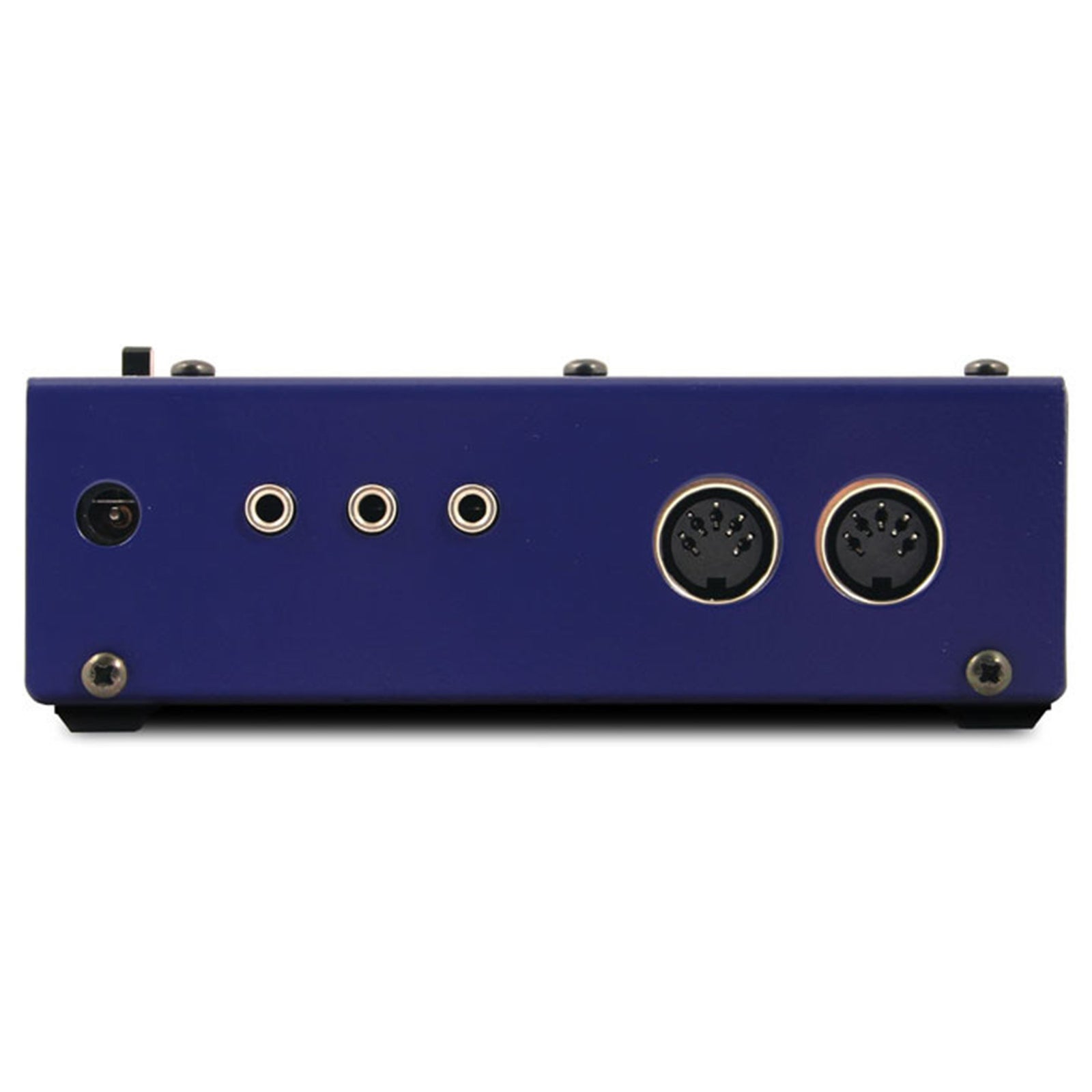

 I/O


MIDI: In, Thru (selectable)


Analog Outputs: CV on 3.5mm jack (V/oct or Hz/V),Gate on 3.5mm jack (Gate or S-trig),Aux on 3.5 mm jack,Digital Outputs: Pins 1 & 3 of Thru socket (if selected) off=0 volts on=5 volts


Power: 9V DC (regulated or unregulated) - never apply more than 12V(never use an unregulated supply greater than 9V as unregulated supplies typically give a higher output than shown). Power Supply Included.
