Connect any type of device and control it freely. 2 x 8 step sequencer
When the classic MS-20 analog synthesizer appeared in 1978, it had a trusted partner in the SQ-10 step sequencer. Now, after thirty years, the MS-20 has been reborn as the MS-20 mini, and the SQ-10 has evolved into the more modern SQ-1.

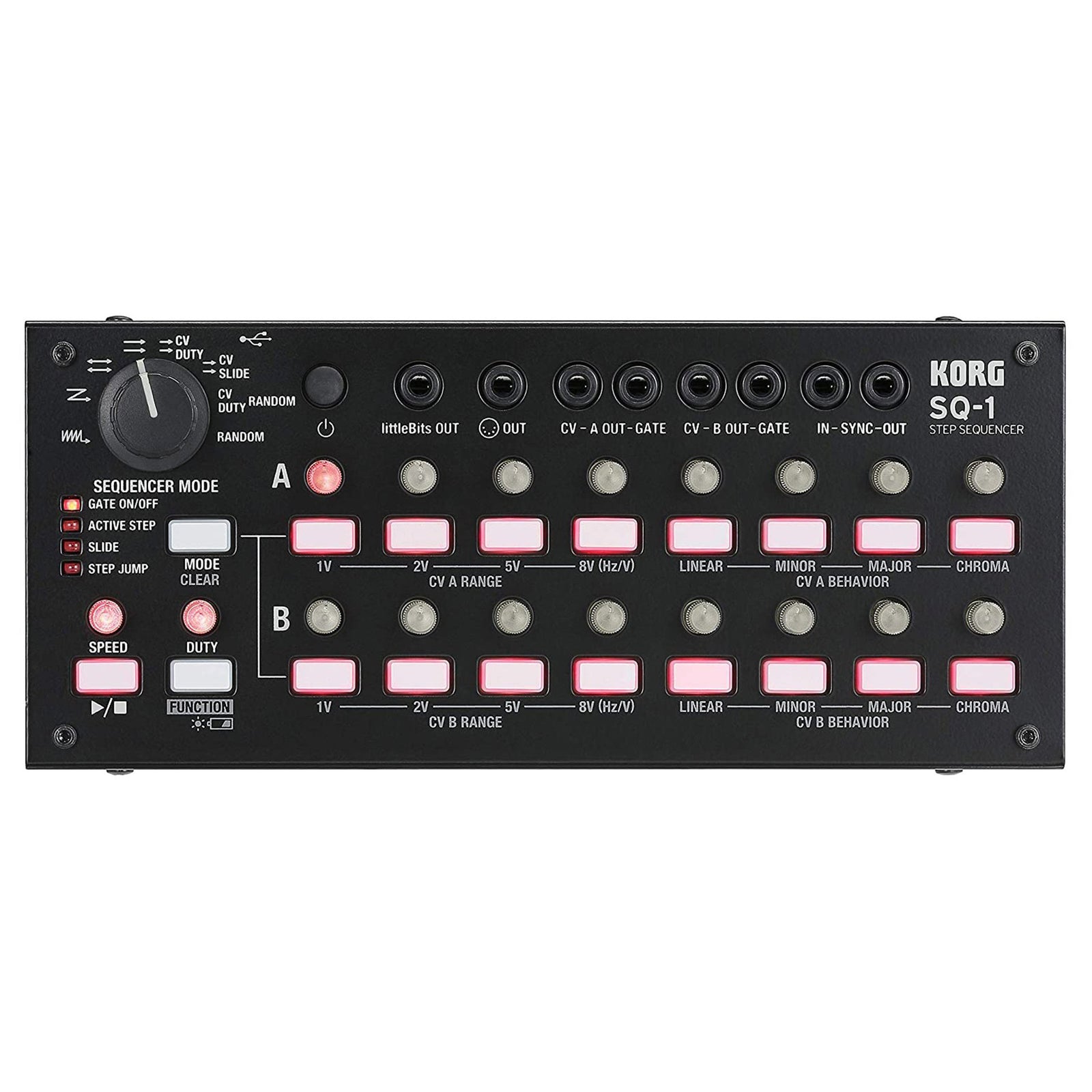

The SQ-1 is a compact step sequencer with 2 x 8 steps. It's wealth of connection jacks allows it to be connected to the MS-20 and a variety of other synthesizers. Vintage analog synths or the latest compact synths can be controlled from this single unit. You can also switch between a variety of synthesizer modes and use the step buttons to create performances overflowing with spontaneity, just as when using a volca unit.
Liberate yourself from the numerically-bound parameter editing that's typical on a DAW; you'll enjoy truly musical inspiration as you train your ears and concentrate on what your fingertips are doing. Don't miss the experience of music that's driven by your instinct.
Connect and control the MS-20 and many other types of equipment
Rather than the commonly used V/Oct standard, the CV design of the MS-20 always used the Hz/V standard that provides excellent pitch stability limiting the step sequencers that are able to correctly control the MS-20. As a descendant of the SQ-10, the SQ-1 supports the Hz/V standard, enabling it to perfectly control the MS-20 or MS-20 mini. It goes without saying the V/Oct standard is also supported, and the voltage level of the CV output (*) and polarity of the GATE output can be specified as appropriate for the device you've connected. This versatility will enable you to control a wide variety of other synthesizers as well.
* V/Oct supported for 1V, 2V, and 5V; Hz/V supported for 8V.
As a connector, the SQ-1 provides two CV/GATE OUT channels, the standard MIDI OUT and USB MIDI, littleBits out (to connect to the littleBits synth kit by littleBits Electronics Inc.), plus the SYNC IN/OUT channel that allows you to connect to the volca series and monotribe. Compact and complete with all the functions you need, the SQ-1 is the ideal hardware sequencer.
Versatile sequencer modes
The SQ-1 provides two channels (A and B) of 8-step sequencer that can operate consecutively, or be used in a variety of other modes. For example, you can run A and B following each other to function as a 16-step sequencer, ignore the order and make the steps play randomly, or use A and B to control different parameters as they run in parallel. From simple sequences to complex changes, you can choose from a variety of modes to suit your needs.
Step buttons inherited from the volca provide excellent improvisatory possibilities
The 2 x 8 step buttons can be used in the usual way to turn notes on/off, but you can also use the MODE button to switch their function, opening up powerful possibilities such as letting you “perform” the sequence itself, as on a volca unit.
“Active Step” lets you skip steps mid-way through a sequence, and “Step Jump” lets you instantly play just the step that you press, producing irregular rhythms or effects that are reminiscent of short loops. “Slide” produces an effect in which steps are connected smoothly; using this to control a synth bass is an easy way for anyone to generate an acid sound.
Specifications
Sequencer Mode
ALTERNATE, ORDER, PARALLEL TURN, PARALLEL ORDER, CV/DUTY, CV/SLIDE, CV/DUTY RADOM, RANDOM
Step Mode
GATE ON/OFF, ACTIVE STEP, SLIDE, STEP JUMP
Sequence Step Resolution
quarter notes, eighth notes, sixteenth notes
CV OUT Pitch
Linear, Minor, Major, Chromatic
CV OUT Voltage
1V, 2V, 5V (Oct) 8V (Hz/V)
GATE OUT Polarity
+ (positive polarity), - (negative polarity)
SYNC IN/OUT Polarity
+ (rise), - (fall)
Connectors
littleBits OUT jack (mini monaural phone jack)
OUT (MIDI OUT) jack (mini stereo phone jack)
CV - A OUT - GATE jack (mini monaural phone jack, CV OUT : Output Level 1V, 2V, 5V, 8[Hz/V],
GATE OUT: output level 10V)
CV - BOUT - GATE jack (mini monaural phone jack, CV OUT : Output Level 1V, 2V, 5V, 8[Hz/V],
GATE OUT: Output Level 10V)
IN – SYNC – OUT jack (mini monaural phone jack, SYNC IN: Max Input Level 20V, SYNC OUT: Output Level 5V)

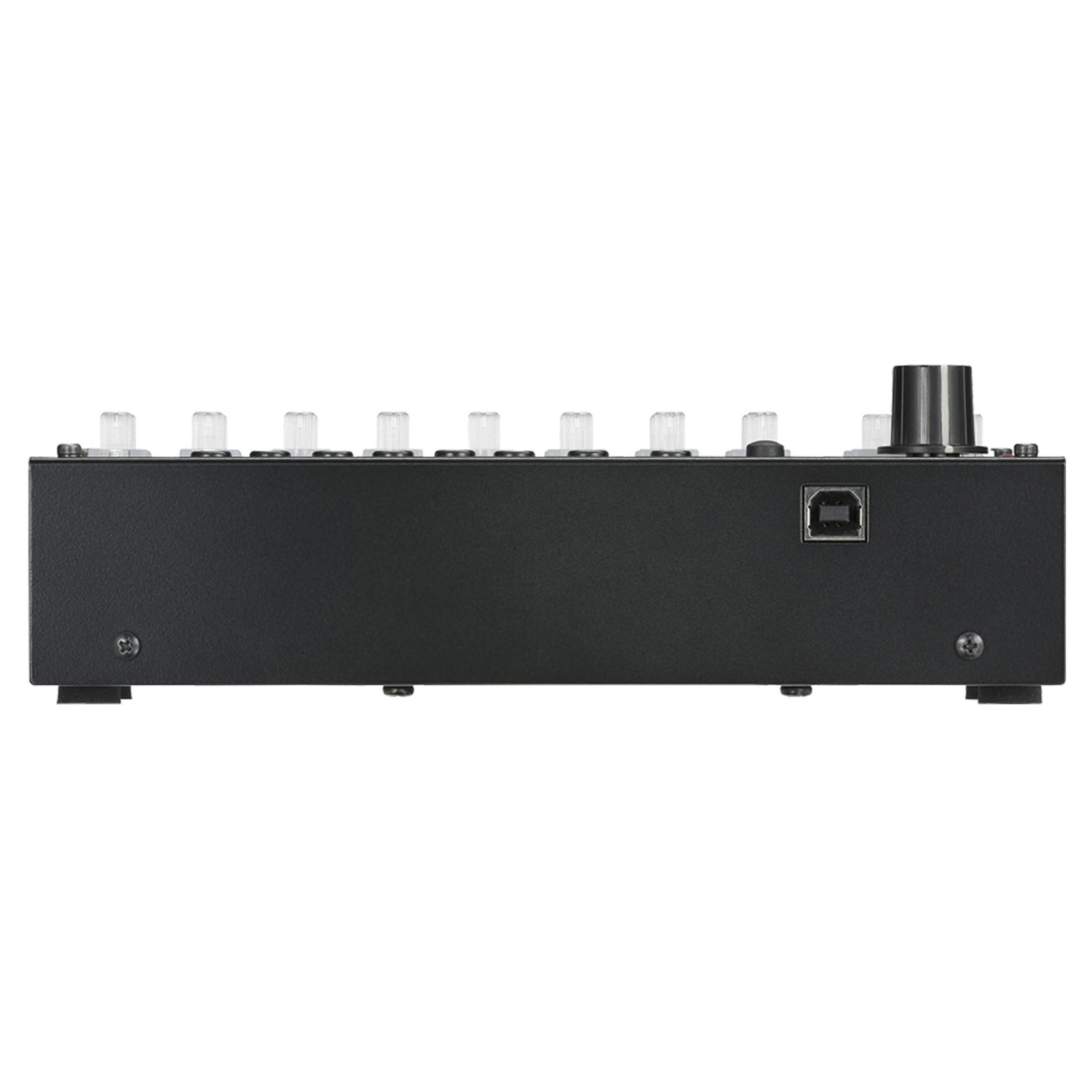

USB jack (type B, USB MIDI)
Power Supply
Two AA batteries (alkaline batteries recommended), or USB power
Battery Life
approximately 5 hours (when using alkaline batteries)
Dimension (W x D x H)
93 x 84 x 63 mm/7.60" x 3.31" × 2.48"
Weight
641 g/1.41 lb
Included Items
Two AA batteries for checking operation, mini plug – DIN cable
Options
Patch cable MS-CABLE-18
Manual
Download Manual
