The Korg X-911 is a very underestimated synth. What it was intended to be, was a stand-alone guitar synthesizer. What it now represents, in these enlightened times, is an all-analog, quite unique, signal processor/effects unit. Whereas a true guitar synth really requires its own dedicated pickup arrangement, this unit simply accepts a standard 1/4" jack input. Just patch your guitar, microphone, or other instrument into the X-911 and play one note at a time. Sporting both CV/Trigger inputs AND outputs, these features alone, make it quite a useful little toy.

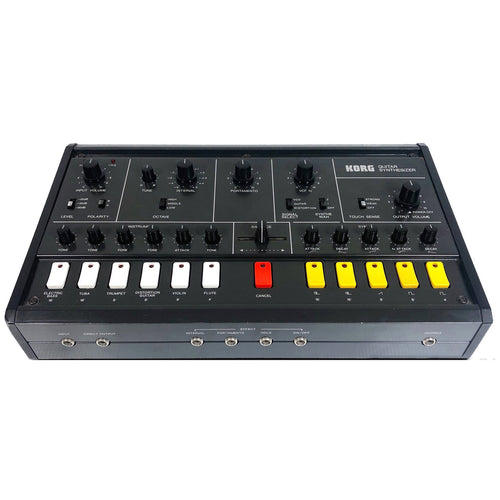

The front panel is divided conveniently into semi-preset traditional sounds, called "Instrument", and more adventurous sounds with the nomenclature "Synthe". The Instrument sounds are named Electric Bass, Tuba, Trumpet, Dist. Guitar, Violin and Flute. The Synthe sounds are designated as graphical waveform icons (Pulse, Ramp, Square). Every voicing has adjustable parameters, with most of the Instrument sounds having a filter control, bar the Violin, which has an envelope control. The Synthe sounds all have envelope controls, namely Attack and Decay.

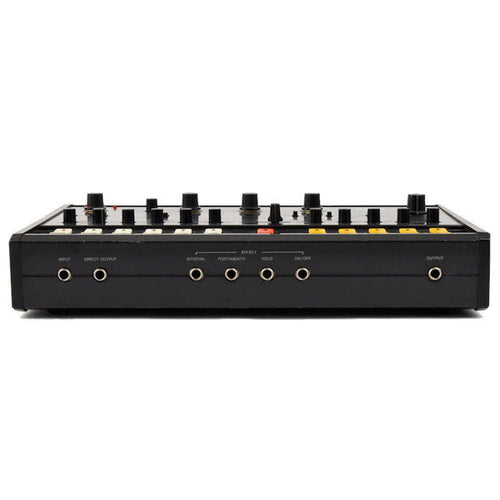

The two sections may be overlaid or used separately, with control via the central balance slider. Many features such as Portamento, Interval, Hold etc. are foot-switchable via inputs on the front panel. Naturally, the all-important Voltage Controlled Filter is in residence, as is a Portamento control. Velocity Response/Touch Sensitivity is controlled by a 3-way switch. All in all, this unit is ideal for those Soundmeisters seeking to distance themselves from the all too common sameness of the modern digital era.

Specifications

Polyphony: Monophonic

Oscillators: 2 (Instrument and Synthe)

Effects: Distortion

Filter: 1; Tone, VCF cutoff

VCA: 1; Attack, Decay

LFO: None

Keyboard: None

Memory: 6 Instrument patches: Electric Bass, Tuba, Trumpet, Dist. Guitar, Violin and Flute

Control: Cv/Hz in/out; Trig in/out; FM in; VCF in; 4 fx input
