This all analog instrument is capable of conjuring a vast array of sounds that range from organic to chaotic. In its more subtle settings, the MF-102 conjures beautiful tremolo effects, while at extreme settings becomes completely transformative - creating bizarre and robotic resonations.
The MF-102 Ring Modulator is a direct descendant of Moog modular synthesizers designed to work with any sound source. This all analog instrument is capable of conjuring a vast array of sounds that range from organic to chaotic. In its more subtle settings, the MF-102 conjures beautiful tremolo effects, while at extreme settings becomes completely transformative - creating bizarre and robotic resonations.

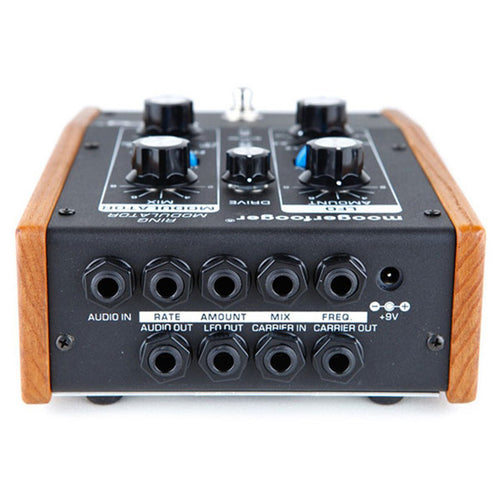

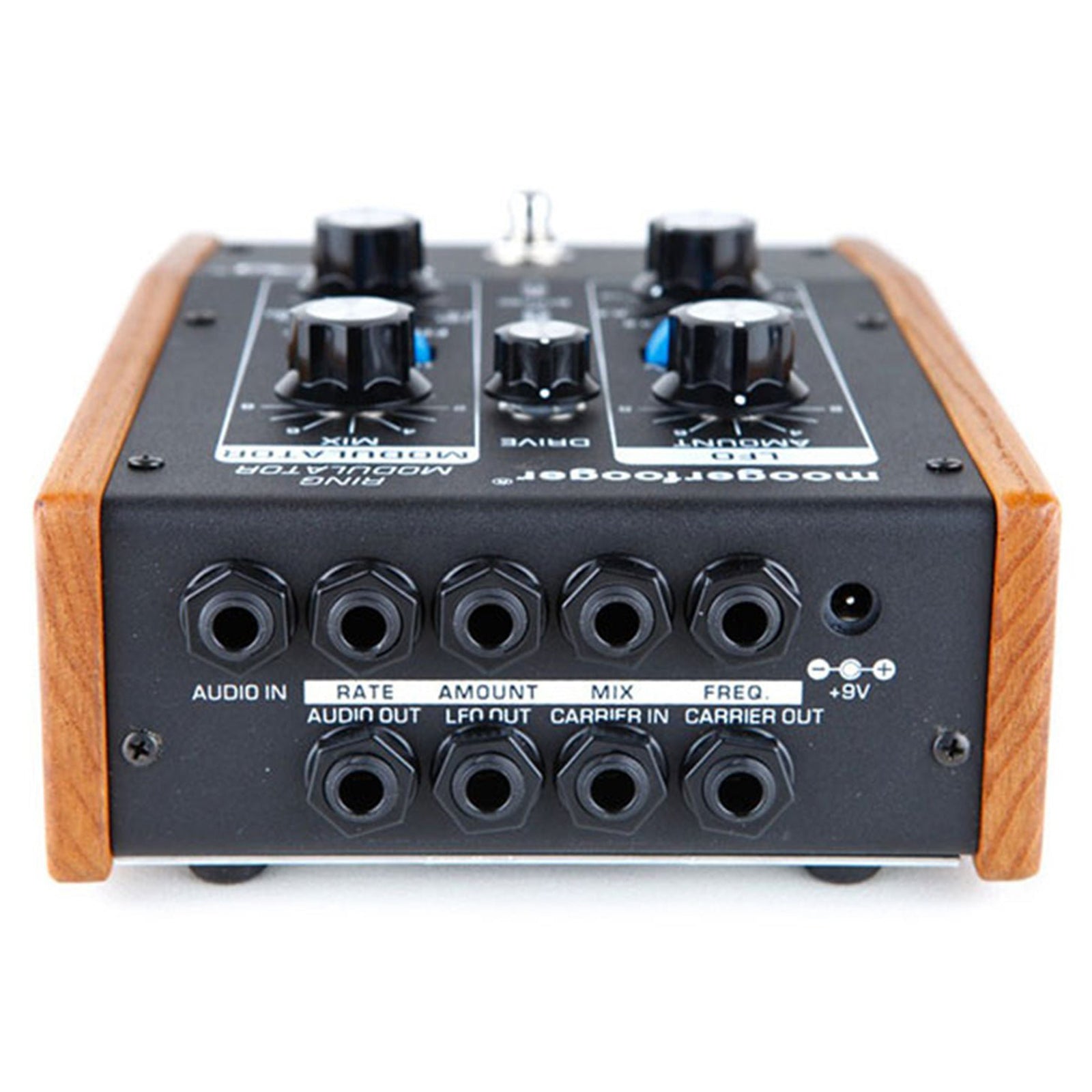

Designed by Bob Moog, the MF-102 is comprised of three complete modular functions: a ring modulator, a voltage-controlled carrier oscillator and a voltage-controlled dual-waveform LFO that combine to create a sonically expansive assortment of both musical and clangorous harmonic manipulations. To further expand on this classic modularity, the MF-102 contains multiple CV/Expression Pedal inputs and outputs. This allows each parameter to be manipulated and controlled simultaneously, while also providing modular interconnectivity between other Moogerfooger analog effects
Specifications

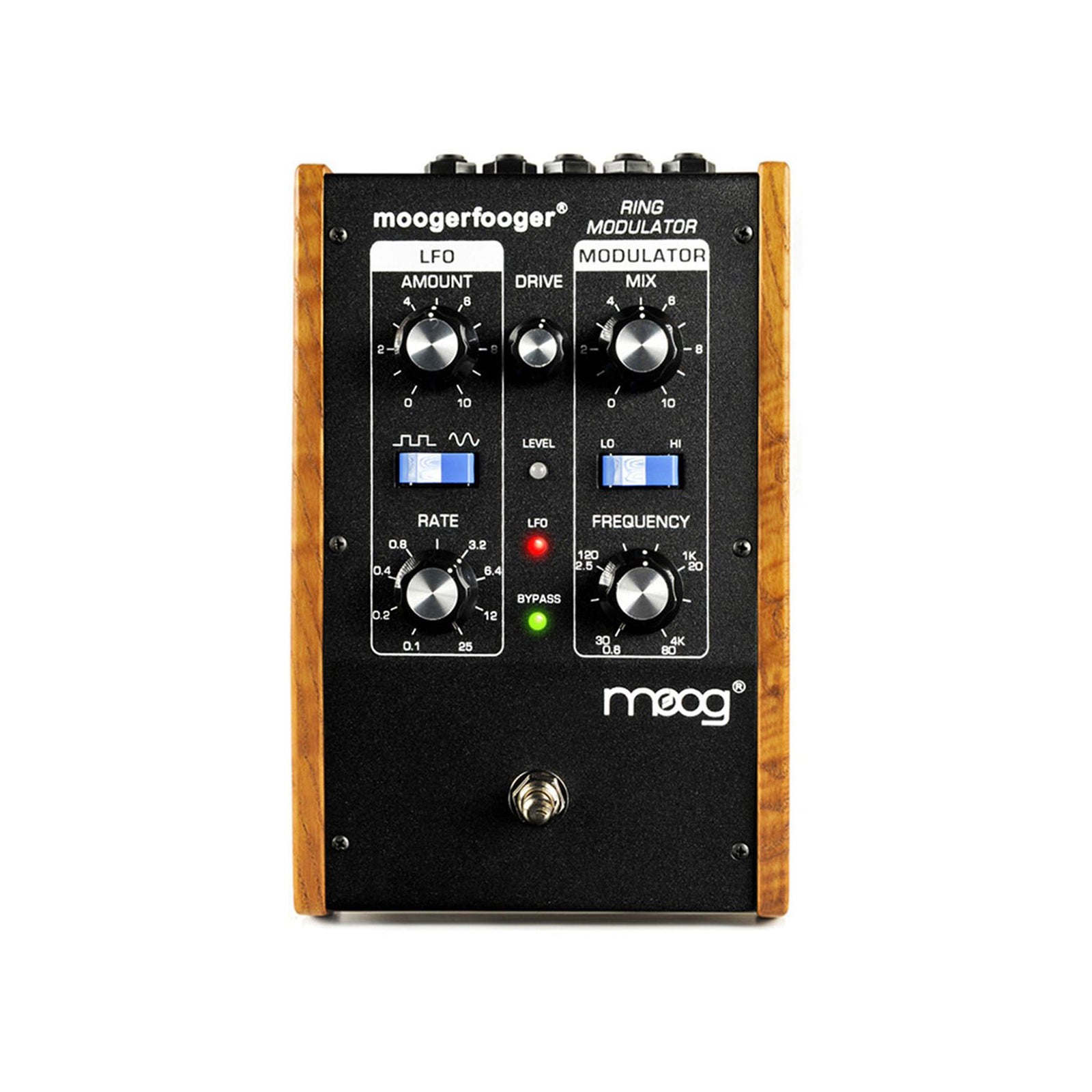

- Frequency control varies the carrier frequency over a six-octave range
- Rate control varies the LFO's frequency from 0.1 Hz to 25 Hz
- LFO Amount control adjusts the amount that the LFO output sweeps the carrier oscillator
- Mix control crossfades continuously from unmodulated to modulated audio
- Drive control adjusts the gain of the audio input
- Square/Sine rocker switch chooses the LFO waveform
- Lo/Hi rocker switch chooses between the frequency carrier range (2 Hz to 130 Hz) and high frequency
- Carrier range: 60 Hz to 4,000 Hz
- Level - a 3-color LED that is used to set the DRIVE control
- LFO - an LED that indicates the LFO rate
- Bypass - a 2-color LED that tells whether the ring modulator is on or bypassed
