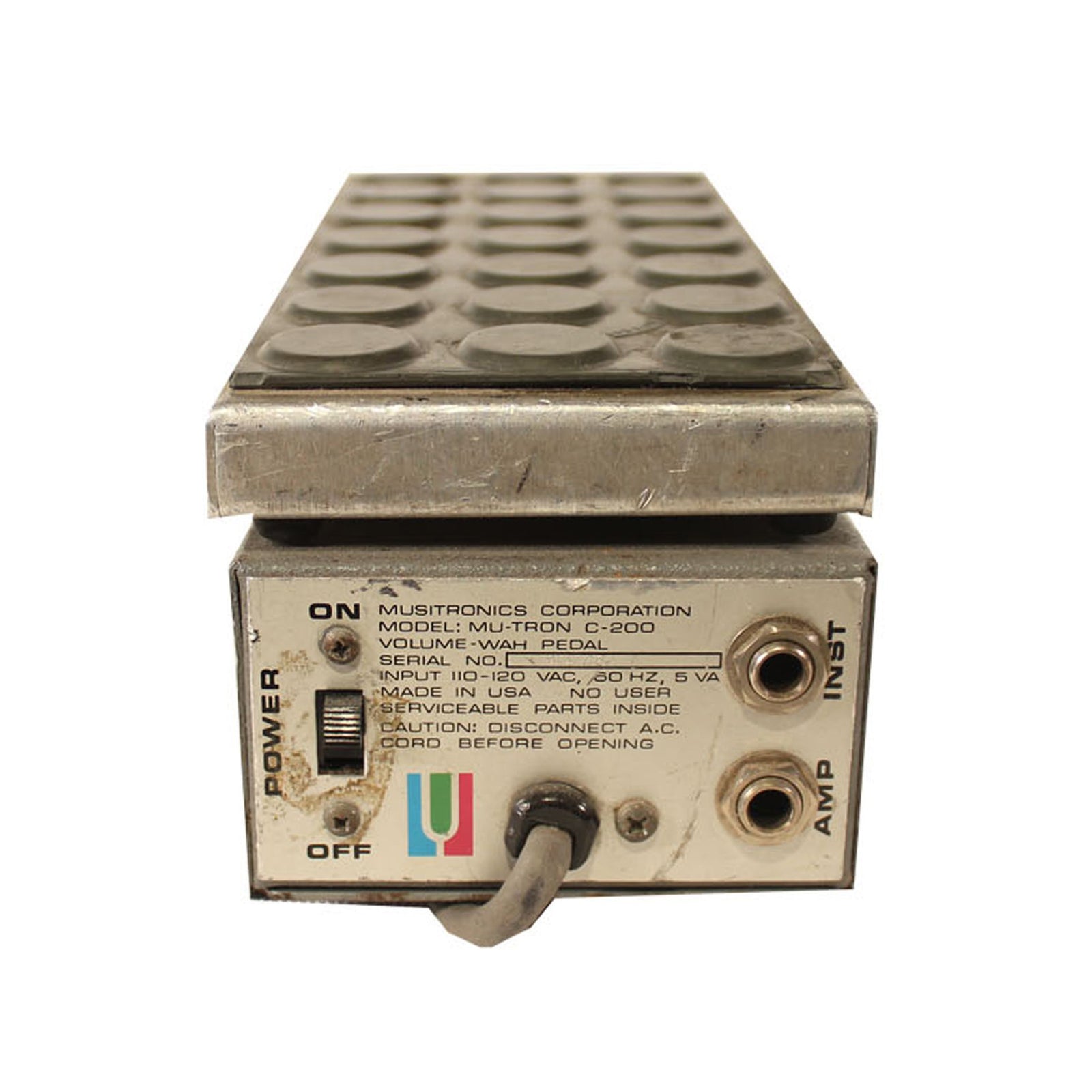

"The MU-TRON C-200 VOLUME-WAH PEDAL features volume and wah functions that can be used independently or in combination. A trim pot on the side of the pedal provides a gain boost of 0 to 10 db, and two LEDs indicate the status of the effects. The unit is AC powered, guaranteed to provide uniform operation overall normal temperature and environmental conditions, and boasts studio-quality sound.”

– From original Musitronics C-200 Volume-Wah product sheet circa 1970s

Specifications

Input Impedance: 390k ohms, unbalanced

Output Impedance: 600 ohms, unbalanced

Trim Pot: Gain boost of 0 to 10db

AC Power Requirements: 115V AC, 60Hz

Dimensions: 11½” l.  X  3¾” w.  X  3″ h. (in closed position)

Weight: 4 pounds
