Oberheim Echoplex Digital Pro

In Stock -
- +
  • SKU: out-061
  • Brand: Oberheim
  • Type: Outboard
  • Availability: In Stock

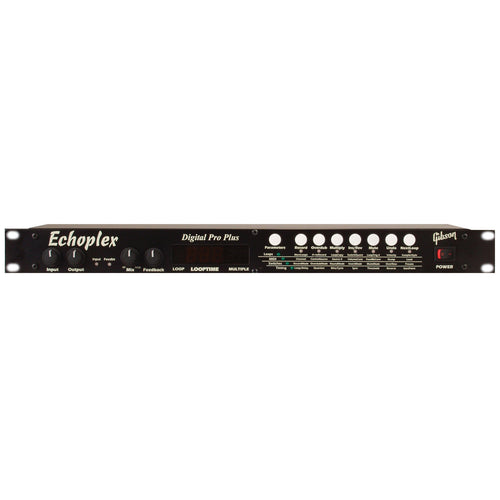

The Echoplex Digital Pro is a digital delay designed for the performing artist! Although conceived in the early nineties, it's a lot like the new Repeater Loop Recorder from Electrix Pro. Because of the Echoplex's extended and high-quality sampling time for its digital delay effect, the Echoplex can be used to record, sample, and play loops all in real-time! The Echoplex features 16-bit digital 44.1kHz recording/sampling to RAM. It ships with 50 seconds worth of memory, however, this can be easily upgraded just like any sampler using standard RAM SIMM chips to up to 200 seconds of recording time.

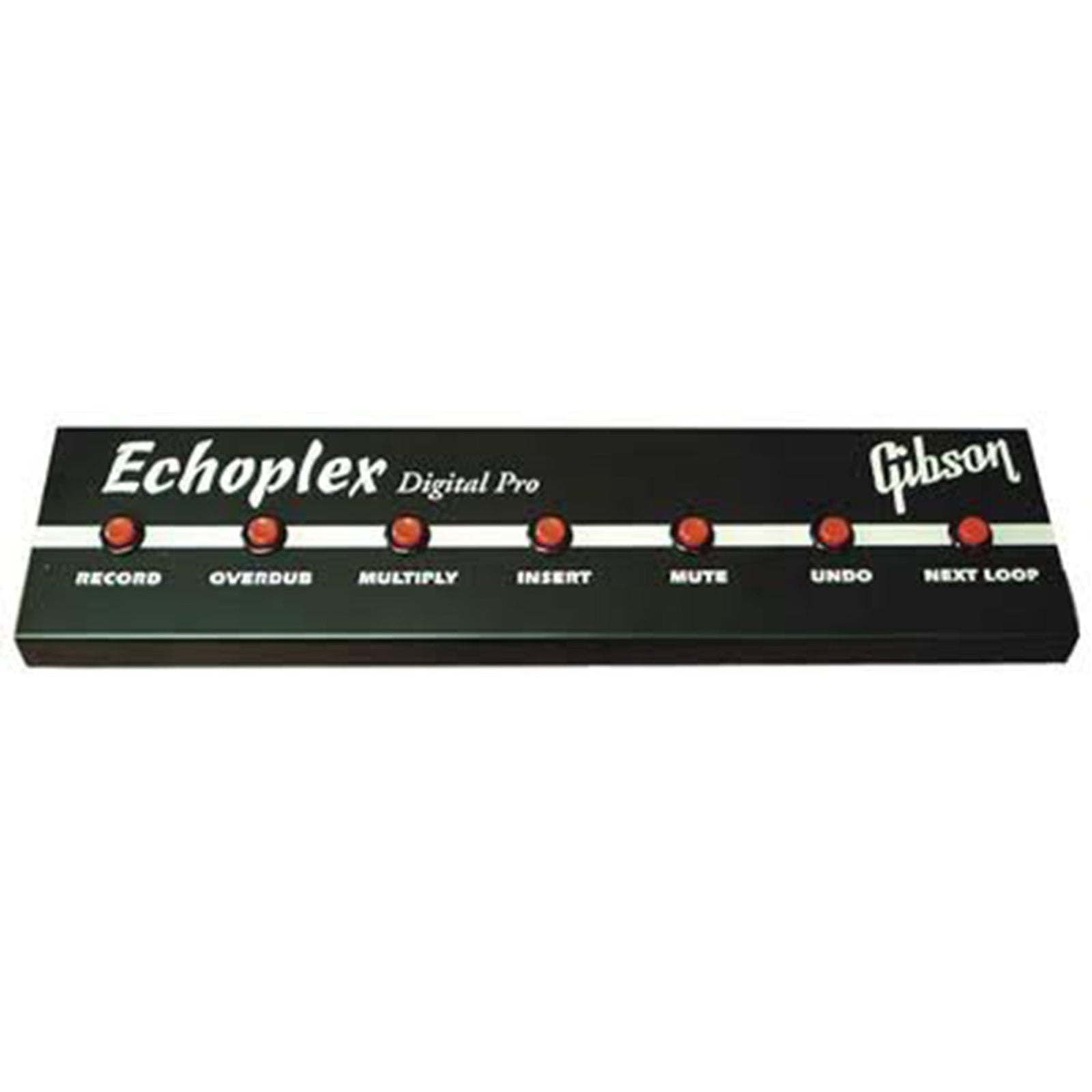

Although the Echoplex may have been designed with the intentions of being a modern digital delay based on the classic tape-based analog delays (Maestro Echoplex EP3), the Echoplex offers digital, clean, and intuitive performance features. Play anything into it, loops, guitar, keyboards..all in real-time. As soon as you stop recording, the sampled material begins looping...and you can now jam along with it! Overdub additional loops and build arrangements, all on the fly!!! The number of overdubs and length of loops is limited only by the amount of memory. Mistakes or undesirable loops can easily be undone. The Echoplex can store up to 9 separate loop/arrangements. A cool EFC-7 Foot controller can also be used so you can punch in and out of loops without having to use your hands...so you can keep playing.

The Echoplex is also fully MIDI capable. All controls send/receive MIDI data and even the Loops can be saved and loaded via MIDI! MIDI sync makes sure your loops can be locked to the tempo of your MIDI sequencers giving the Echoplex a niche in your MIDI-studio as a dedicated loop-player! Loops, like samples, can be assigned to keys on a keyboard and can be triggered as loops or single-shot samples. Other functions of the Echoplex include Reverse, for backward loops, and a Multiplay feature which repeats loops a user-defined number of times to create an extended loop (ie: extend a 4-beat loop into a 16-beat loop). Unfortunately, there are no robust effects available such as filtering, time-stretching, pitch shifting, stereo-effects, or resampling. But it is a lot more practical, reliable, and cleaner sounding than any old analog tape-based Echoplex from the 1960s!! It has been used by Brian Eno, U2, and Crystal Distortion.


Sampler: 16-bit / 44.1kHz

Memory: RAM-based: 50 seconds (expandable to 200 seconds)

Loops : Unlimited Overdubs per Loop. Up to 9 Loops can be stored/recalled

Effects: Loop Reverse

Keyboard: None

Control: MIDI
