Video
Story

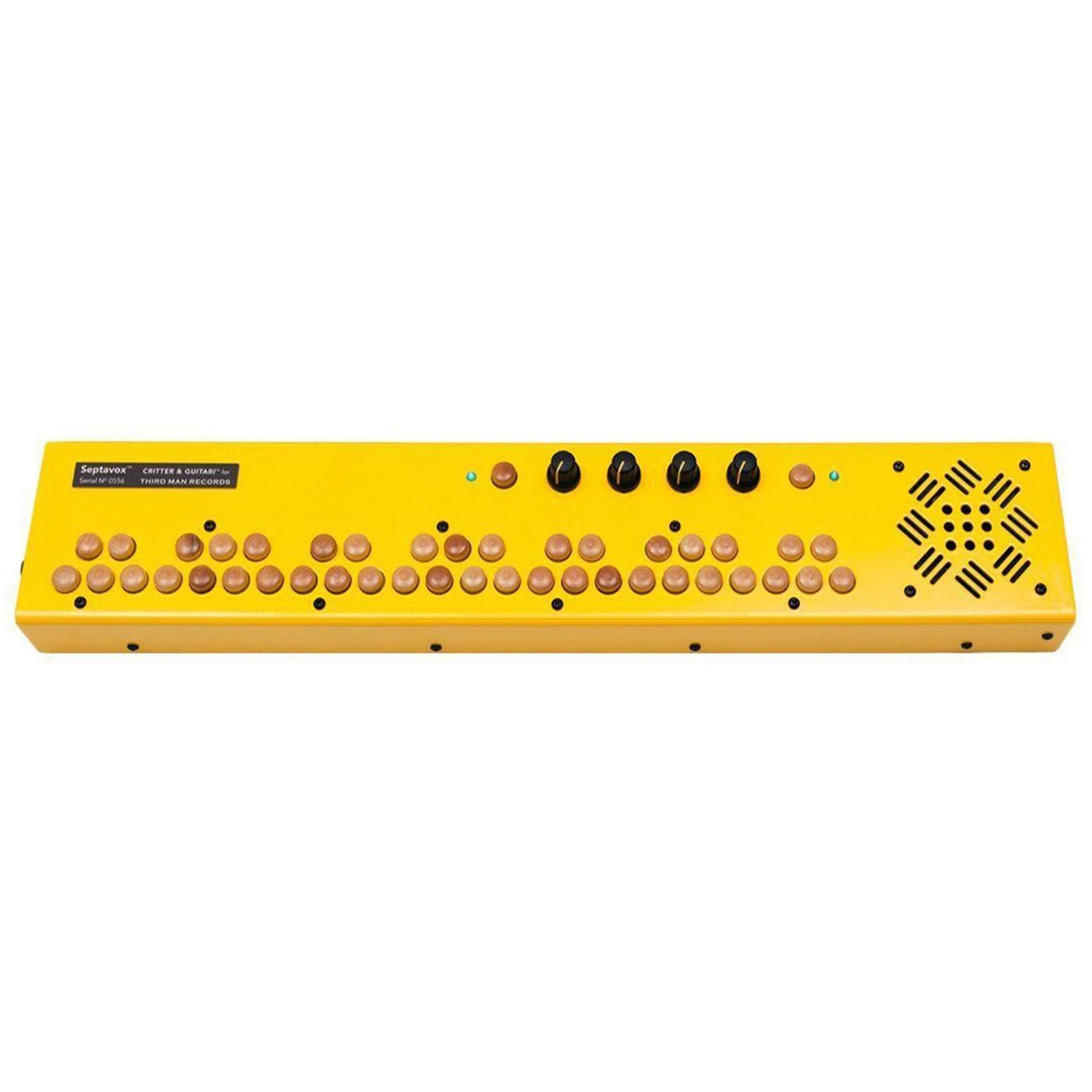

Created for Third Man Records, the Critter and Guitari Septavox synthesizer has 41 keys, 7 modes, 7 tones. One button selects the synth mode, and one button selects the tone. Each button has a LED indicating the setting. With the seven modes and seven tones there are 49 possible sound settings, each one easily remembered as two color combinations: red and yellow, blue and white, and so on.
Specifications
- All-metal (aluminum) powder-coated enclosure: 18.875" x 3.5" x 2.125" (length, width, height (including knobs)
- 3W speaker (3" diameter)
- 41 keys (~3.5 octaves)
- 1/4" monophonic output jack
- MIDI In & Out Jacks
Available colors: Matte Black enclosure, yellow knobs with black pointers; Yellow enclosure, black knobs with yellow pointers
Weight: 2.0 lbs. (without batteries)
Four control knobs: Parameter Knob 1, Parameter Knob 1, Tuning, Volume
Seven Modes (LED indicates mode): Vibrato, Slide, Two-Octave Arpeggiator, Swell, Octave Cascade, Slicer, Pipe Glide
Seven Tones (LED indicates tone): Dirty Sine, Sine, Electric Organ, Square Wave, Sawtooth, Dirty Square, Computer
OUTPUT CONNECTORS: 1/4-inch TS
MIDI CONNECTIONS: In, Out UMBER OF KEYS 41

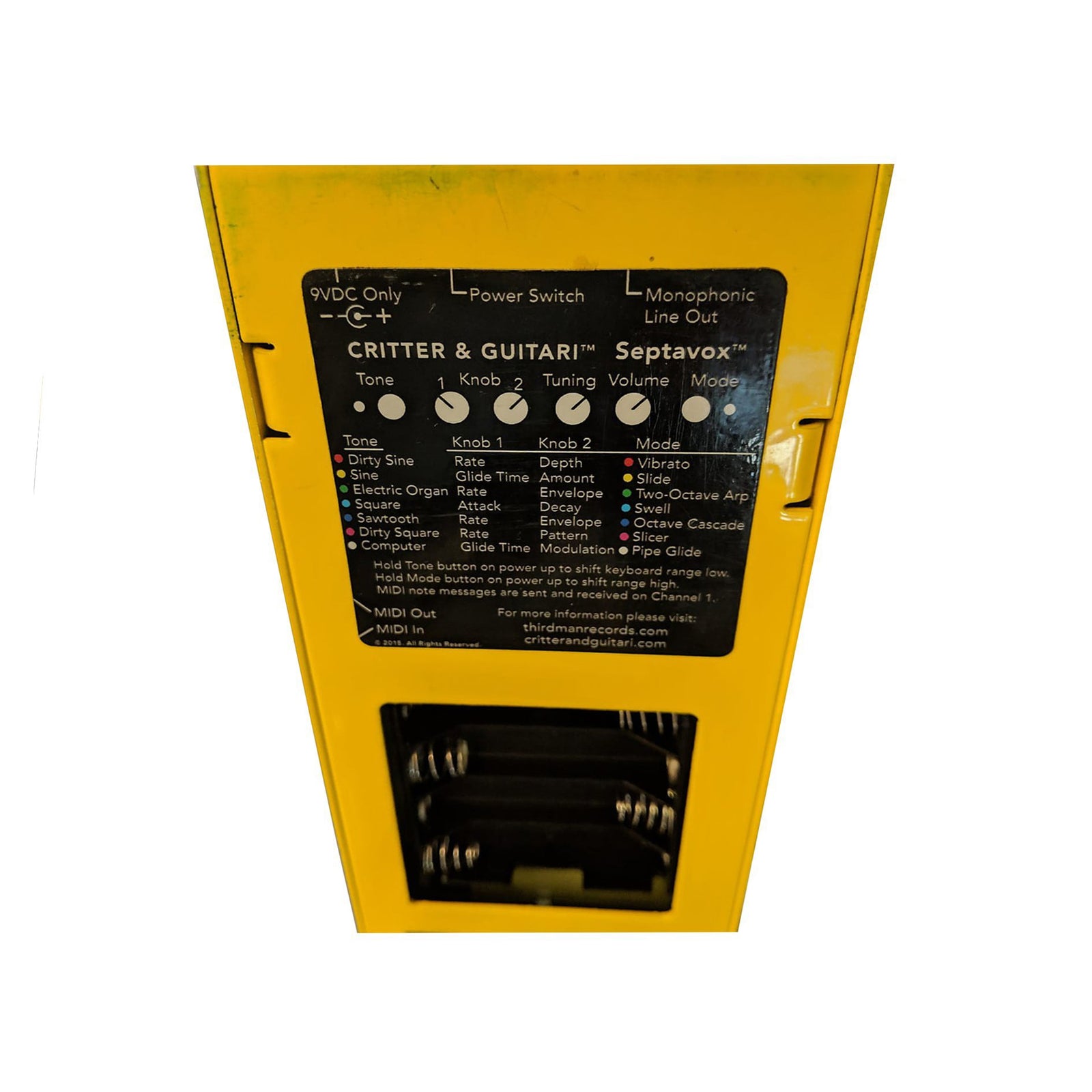

Power: Ships with power supply: 9VDC, 1.0 Amps, center-positive polarity tip Can also be powered from 4 'AA' batteries
Manufactured in USA
Manual
Download Manual
