Roland

Roland CSQ-600 Digital Sequencer

$0.00 CAD
In Stock -
Roland CSQ-600 Digital Sequencer - Synth Palace
Roland CSQ-600 Digital Sequencer - Synth Palace

Roland CSQ-600 Digital Sequencer

$0.00 CAD
In Stock -
$0.00 CAD
- +
Details
  • SKU: seq-004
  • Brand: Roland
  • Type: Sequencer
  • Availability: In Stock
Description

Video

Story

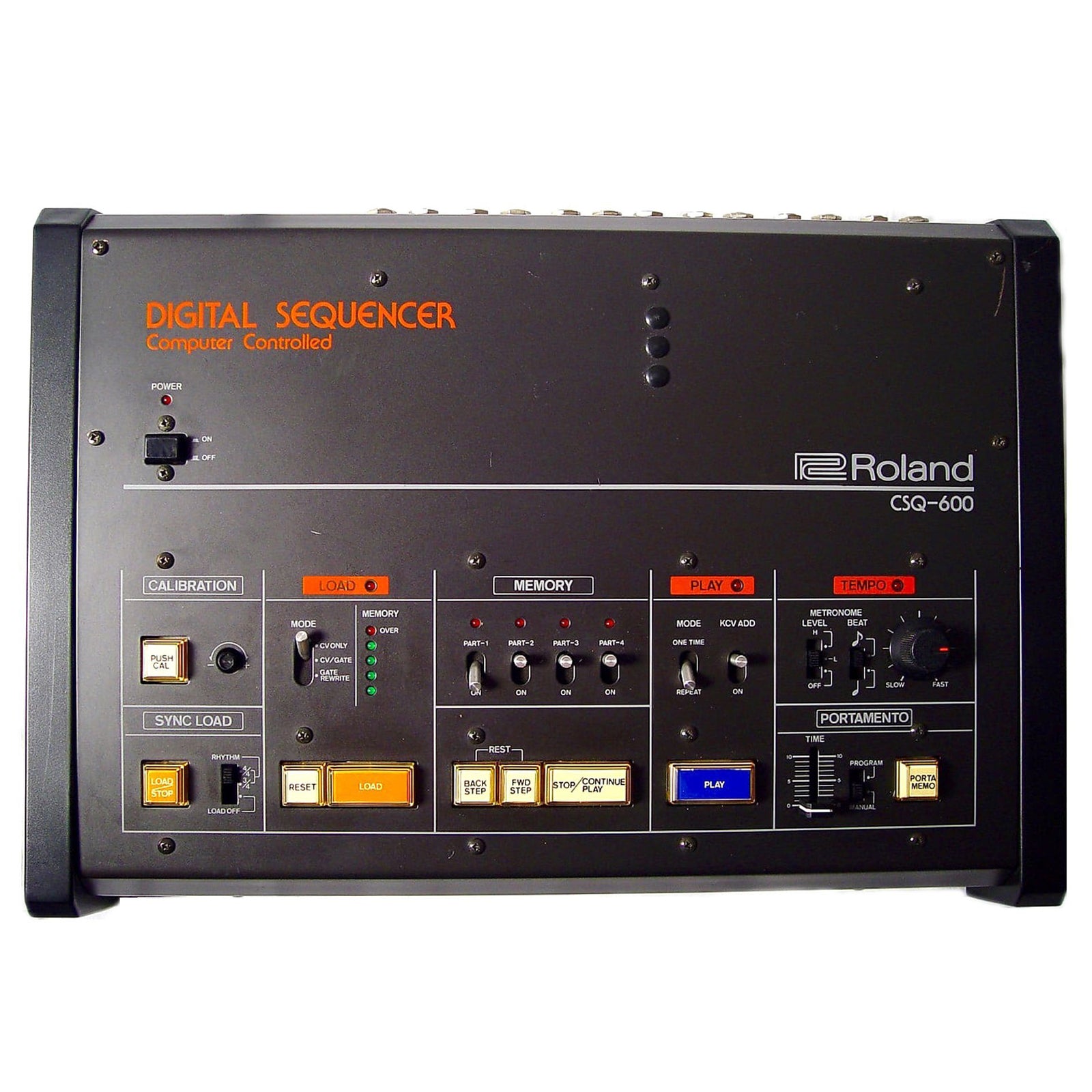

The Roland CSQ-600 is a microcomputer-controlled digital CV/gate Sequencer. It features four programmable sequences which can be chained together or played at the same time. Sequences can be recorded via an external CV/gate input or using step-time. Portamento can be either programmed or adjusted manually as a sequence is being played. Sequences can be saved and loaded via cassette interface. A simpler version of the sequencer, called the CSQ-100 was also made.

Specifications

MAXIMUM STORAGE CAPACITY:
600 notes (150 notes x four parts)

CALIBRATION

CALIBRATION button


CALIBRATION adjustment control

METRONOME

LED tempo indicator


Metronome level switch (H, L, OFF)
Quarter note, eighth note, switch


Tempo Control

LOAD SECTION

LED load indicator


Led memory indicator (x5)


LOAD MODE switch (CV ONLY, CV/GATE REWRITE)


RESET button


Load Button

SYNC LOAD SECTION

Rhythm meter selector (4/4, 3/4, OFF)


LOAD / STOP button

MEMORY SECTION

LED memory part indicator (x4)


PART SELECTOR switches (1-4)


STOP/CONTINUE

PLAY button


BACK STEP button


FORWARD STEP button

PLAY SECTION

LED indicator
PLAY MODE switch (ONE TIME, REPEAT)
KCV ADD switch

PORTAMENTO SECTION

PORTAMENTO button
TIME level
PROGRAM/MANUAL switch

POWER SUPPLY

POWER on-off button

POWER CONSUMPTION

8W

DIMENSIONS

450(W) x 305(D) x 95(H) mm

WEIGHT

3.9 kg

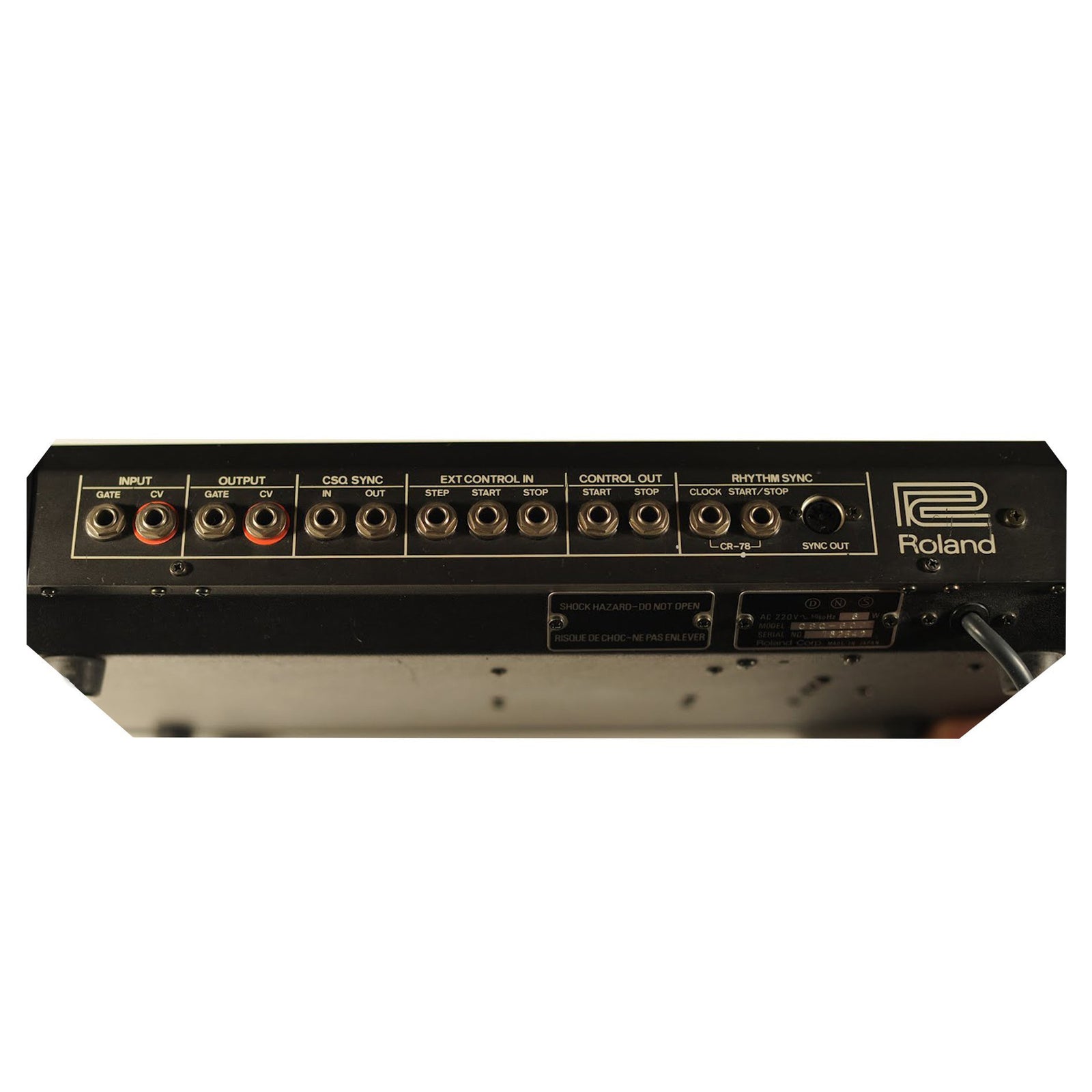

JACKS

GATE, CV input (CV=1 oct . /V, OV~+5V) (Gate=on at +2.5V)


GATE, CV output (CV=1 oct . /V, -2V~+8V) (Gate=OFF: 0V, ON: +15V)


CSQ SYNC in, out (clock)


EXT CONT IN step, start, stop


STEP (+2.5V), START (open or + 15V), STOP (open or + 15V)


CONTROL OUT start, stop


RHYTHM SYNC clock, start/stop, sync out (START SIGNAL, GND, CLOCK)
