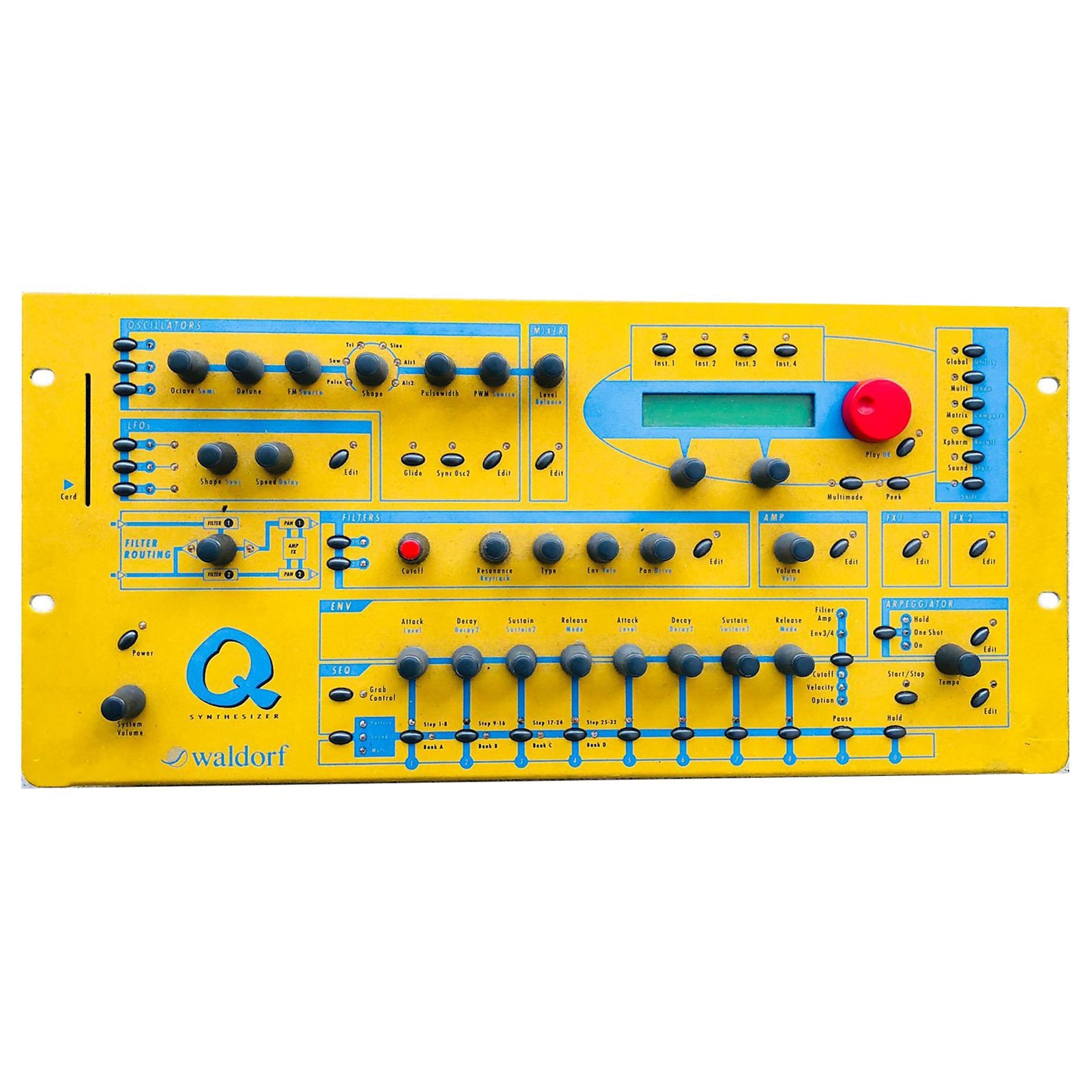

The Waldorf Q is a turn of millennium German professional virtual analog synthesizer well suited for demanding performance and studio work! The Q is a large and bright yellow beast. The Q faithfully reproduces the sounds and programming characteristics of virtually any sophisticated analog synthesizer with state-of-the-art control and precision. Coming from the brainchild of Wolfgang Palm, of PPG Wave fame, this synth is now a legendary exemplar of wavetable synthesis.

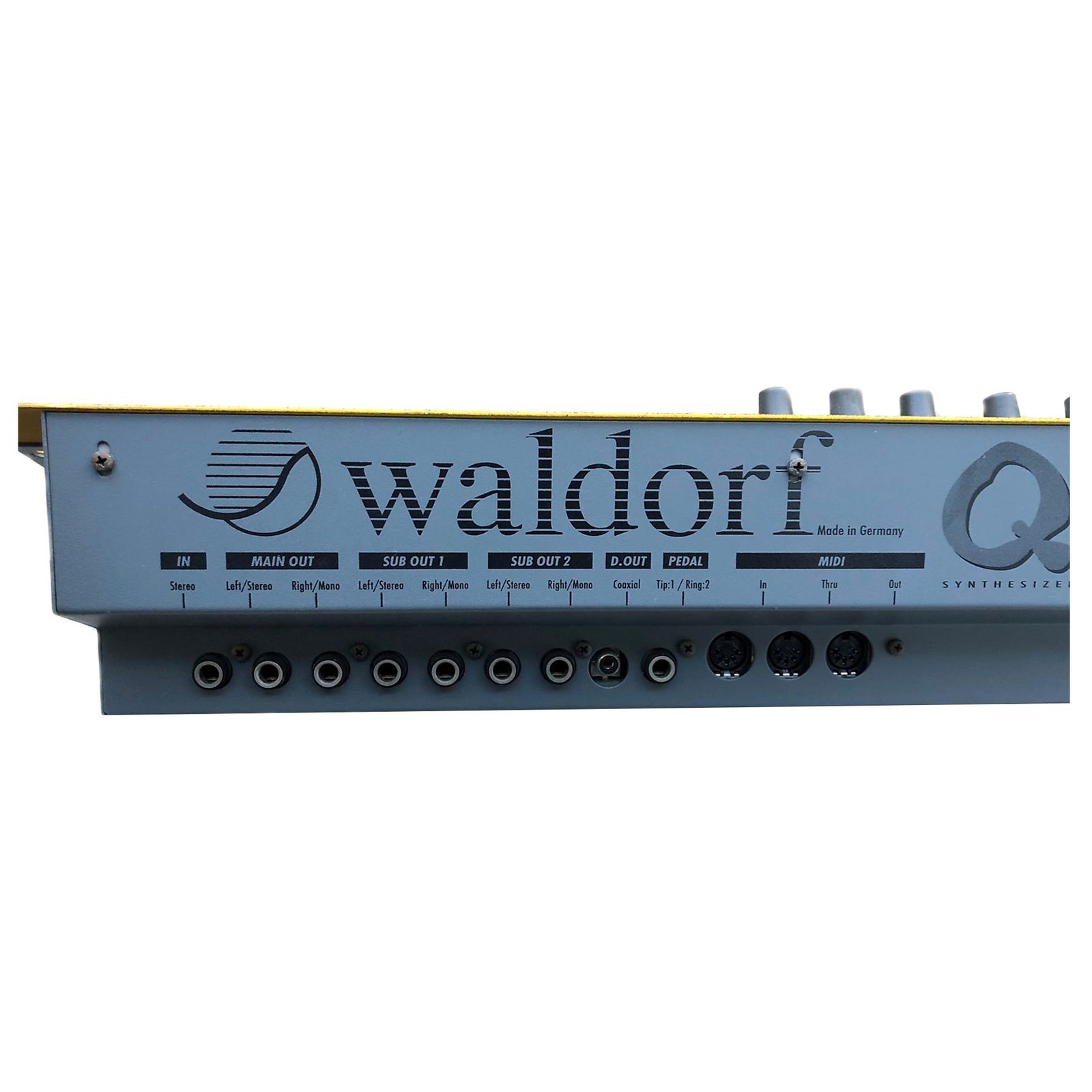

With 16 to 32 voices and 16 multitimbral parts, the Q is well adapted for reliable live use. Waldorf's excellent analog sound emulation is complemented by sophisticated yet familiar analog-type controls and parameters. There are 3 oscillators per voice, 3 LFOs with ramp, sine, square, etc. and 2 12/24dB Filters (Low pass, band pass, hi pass, notch, comb, ring mod and more). A powerful arpeggiator and sequencer are also on-board for creating complex accompaniment or arpeggios. There are 58 knobs to aid you in tweaking away at creating amazing sounds! All knobs and edit parameters are MIDI controllable. The Waldorf Q is topped off with 8 effects processors (2 per sound that include Chorus, Flanger, Phaser, Overdrive, AM, Delay, Reverb, etc.), 2 analog audio inputs, 6 outputs and 1 S/PDIF output (44.1kHz / 48kHz switchable) and vocoding capability.
The Q is a professional-grade virtual analog synth that combines the raw power of analog synthesis with modern technology, stability and creativity. It has been used by Überzone and Kekko.
Specifications
Model: Q rack
Year Released: 2000
Display: 2x20 character
Polyphony: 16 to 32 voices
Performance: 16 part Multi mode.
Filter Types (digital): 12dB Slope (2-pole), 24dB Slope (4-pole), Band Pass, Comb, Formant, High Pass, Low Pass, Resonance
LFO Parameters: Sample & Hold, Saw Up, Saw Down, Sine, Square, Triangle
Envelopes: 4
Parameters: Attack, Decay, Sustain, Release
User Patches: 300
User Performances: 100
User Drum Kits: 20
Power Consumption: 12 watts
Frequency range: 0Hz-24kHz
Dynamic range: 86dB
Dimensions: 483 mm x 92 mm x220mm
Weight: 3.1 kg
Manual
Download Manual
